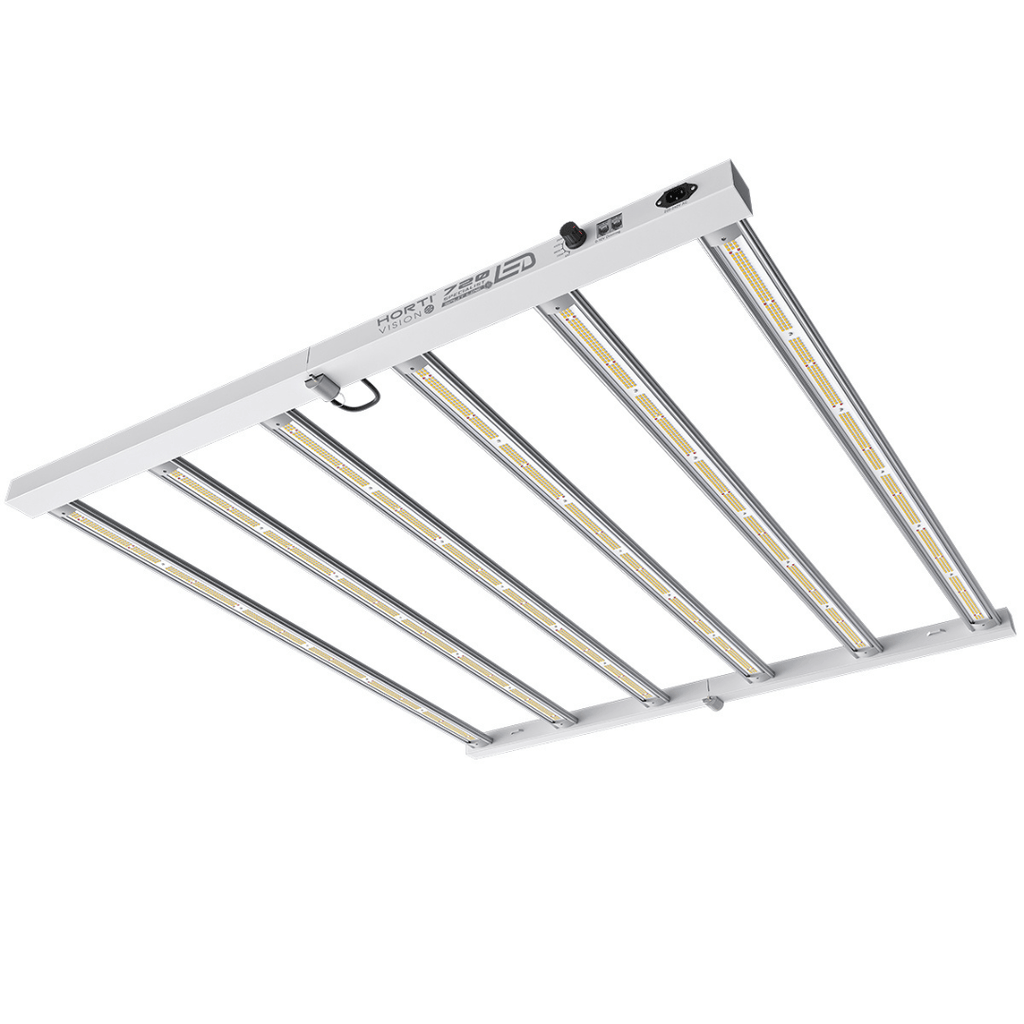

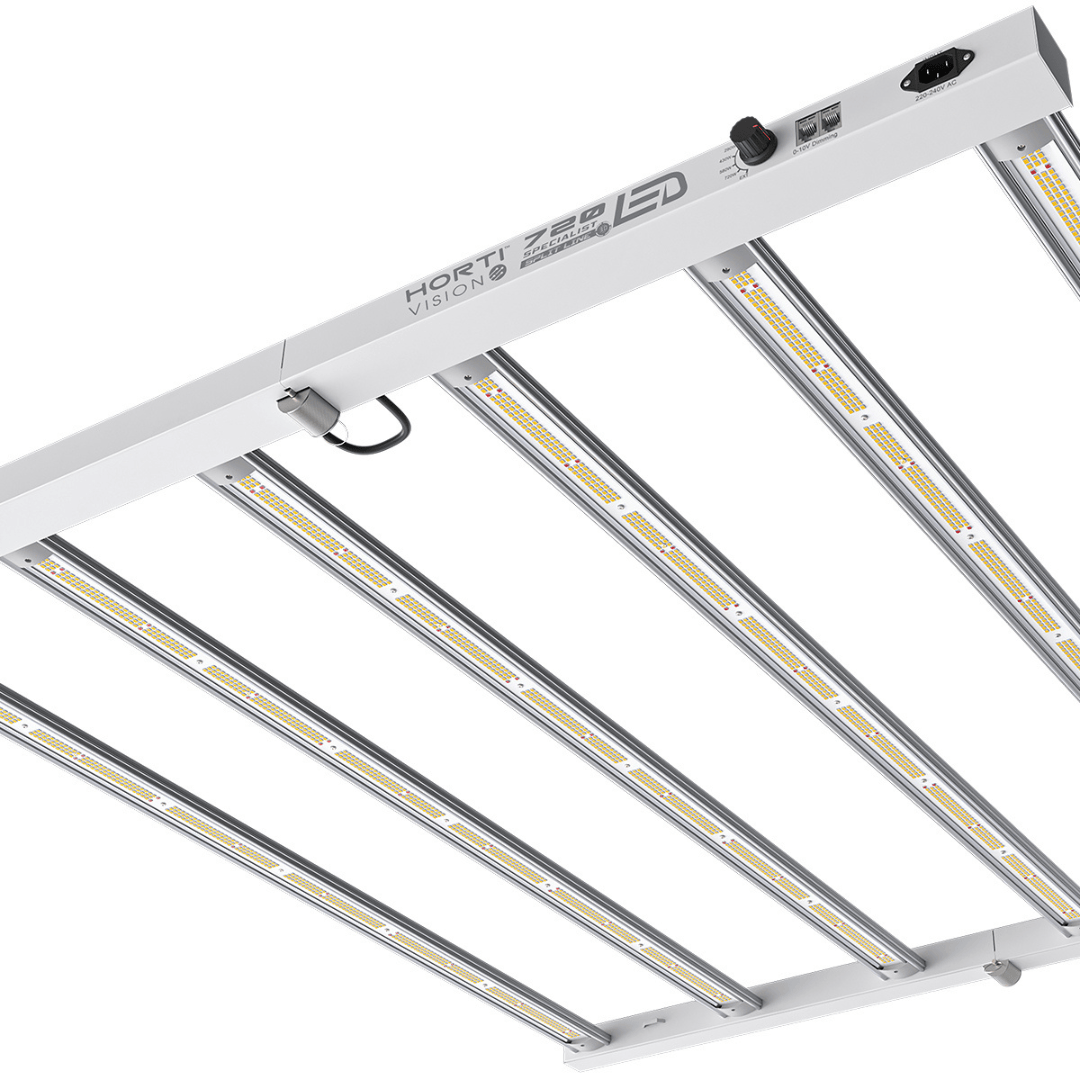

The Horti-Vision 720W Specialist Split Line 3.0 LED Grow Light is a high-output, full-spectrum horticultural lighting fixture engineered for flexible indoor growing environments.
Delivering 2160 μmol/s of photon output at an efficiency rating of 3.0 μmol/J, it combines powerful performance with a unique modular design that allows the complete 720W fixture to operate as one grow light or separate into two independent 360W units using the centre quick-release pin. This versatile configuration makes it suitable for top lighting, multi-tier growing racks, sidewall lighting, narrow growing spaces and indoor grow rooms, while four selectable power levels allow light intensity to be adjusted as growing requirements change.
Features
-
720W Full Spectrum LED Grow Light: Designed to provide broad-spectrum horticultural lighting throughout the growing cycle.
-
2160 μmol/s PPF Output: High photon output supports demanding indoor horticultural lighting applications.
-
3.0 μmol/J Efficiency: Produces high light output from the fixture's 720W maximum power rating.
-

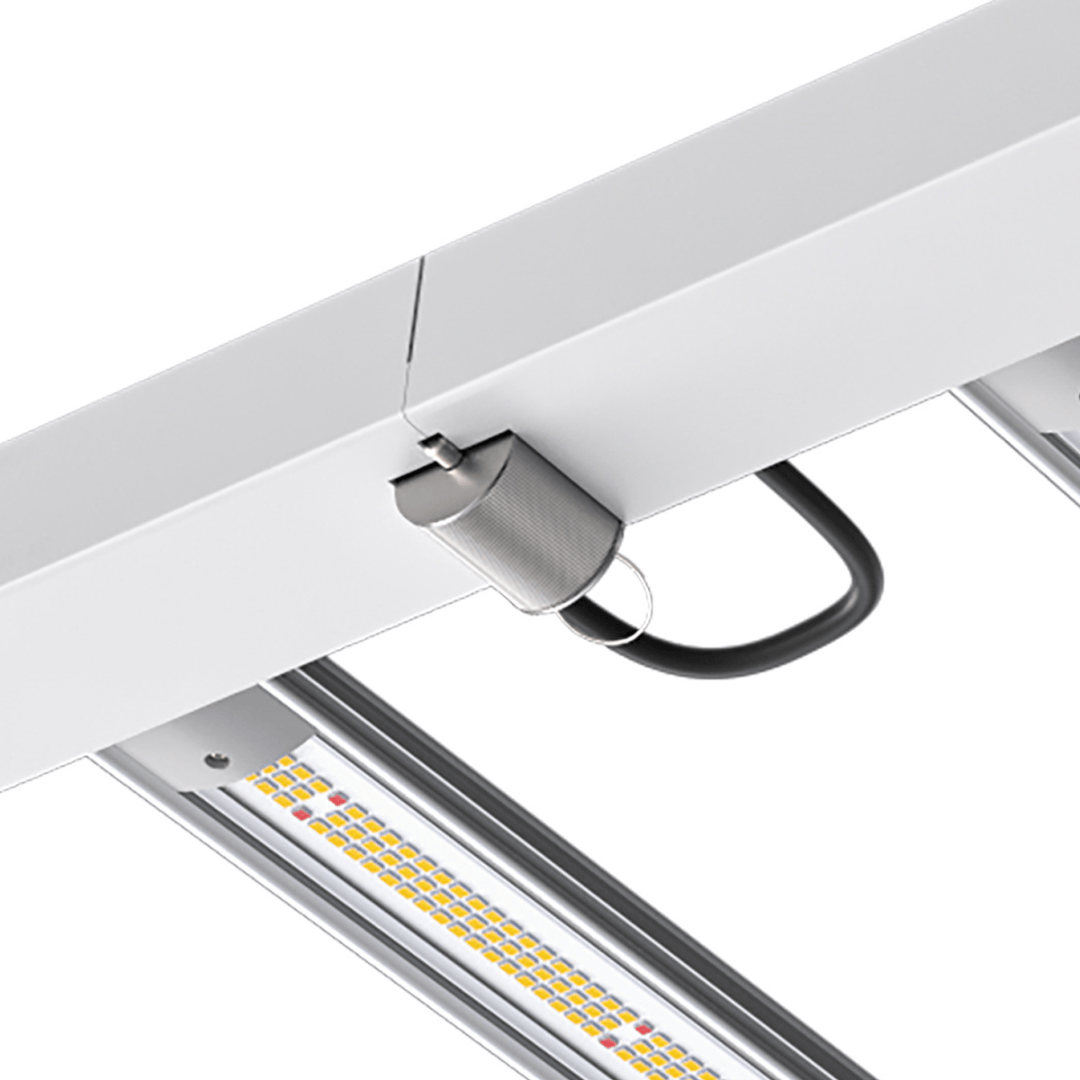

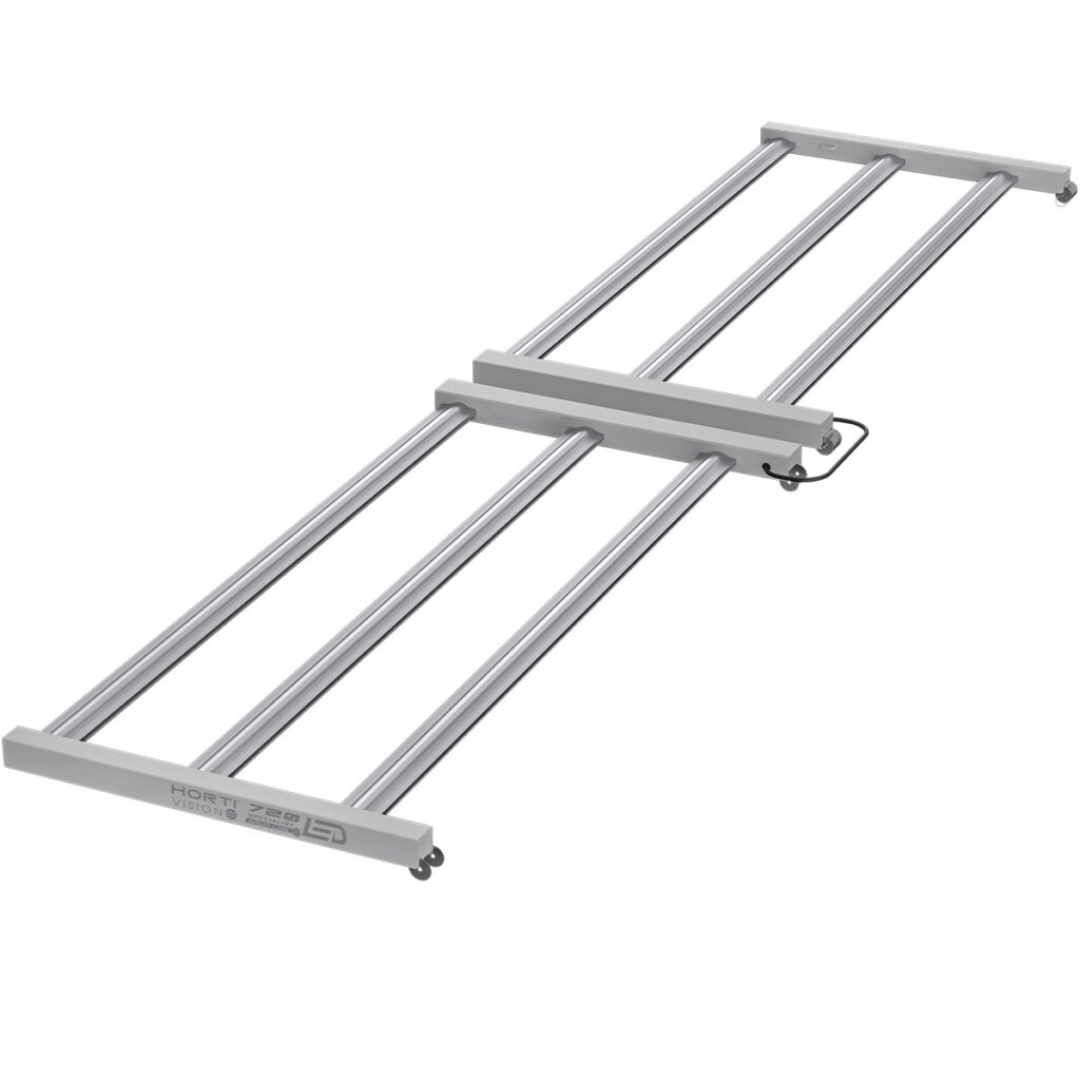

Innovative Split Line Design: A quick-release centre pin allows the fixture to separate into two fully functional 360W LED lights for more flexible placement.
-
Four-Level Dimming: Select between 290W, 430W, 580W and 720W to tailor output to different crop stages and lighting requirements.
-

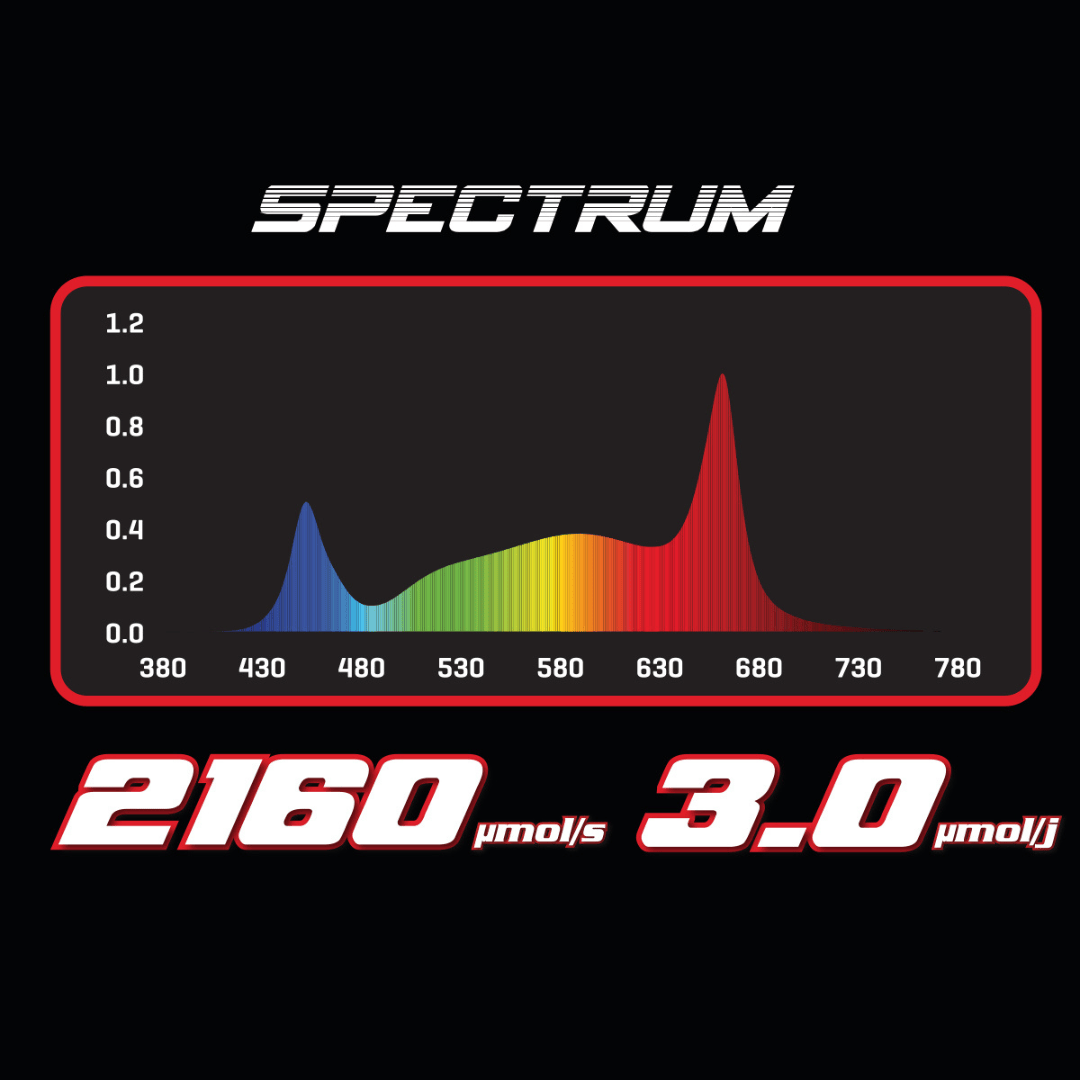

3144 LED Diode Array: Product packaging specifies a combination of 4000K warm white, 6500K cool white and 660nm red LEDs for a full-spectrum output.
-
Integrated Driver: The streamlined fixture incorporates its 720W driver into the design for a clean installation.
-
Controller Compatible: Built-in control connections support integration with compatible Horti-Vision lighting control equipment.
-
Flexible Mounting Options: Use the complete fixture for conventional overhead lighting or position the two 360W sections independently for racks, sidewalls and narrower spaces.
-
IP44 Rated Fixture: Designed with an IP44 rating for suitable protected horticultural environments; the fixture should not be submerged in water.
Technical Specifications
Model: Horti-Vision 720W Specialist Split Line 3.0 LED. Maximum power: 720W. Split configuration: 2 x 360W. Photon output: 2160 μmol/s. Efficiency: 3.0 μmol/J. Dimming settings: 290W, 430W, 580W and 720W. Spectrum: full spectrum. LED diode count shown on packaging: 3144. Driver: integrated. Protection rating: IP44. Recommended hanging height stated in the product manual: 50–100 cm above the canopy. Control connectivity includes control ports and an external RJ14 network cable.
Ideal Applications
The adaptable Split Line configuration makes this LED grow light well suited to indoor grow rooms, horticultural production spaces, overhead top-lighting installations, multi-tier growing racks, sidewall lighting and narrow growing areas. The fixture can remain assembled when broad overhead coverage is required or be divided into two 360W sections where independent positioning provides a more practical lighting arrangement.
How to Use
Before installation, place the fixture on a flat, stable surface and handle the frame carefully to avoid damaging or touching the LED diodes. Decide whether the light will be installed as a complete 720W fixture or as two separate 360W units. When splitting the fixture, disconnect it from power and allow it to cool for at least 20–30 minutes before removing the designated quick-release pin at the centre joint. For standard installation, suspend the fixture securely using its hanging points, distribute the weight evenly so it remains level and position it according to your lighting plan; the manufacturer recommends a hanging height of approximately 50–100 cm above the canopy. Connect the fixture to its power cable before plugging the cable into the electrical outlet, then choose the appropriate 290W, 430W, 580W or 720W dimmer setting for the application. Always follow local electrical requirements and the manufacturer's installation and safety instructions.
Why You Should Buy
The Horti-Vision 720W Specialist Split Line 3.0 LED stands out for growers who want both powerful full-spectrum output and greater installation flexibility from a single horticultural fixture. Its 2160 μmol/s output and 3.0 μmol/J efficiency are combined with selectable dimming and an innovative quick-release design that converts one 720W grow light into two independent 360W fixtures. Rather than being limited to a single overhead configuration, the same lighting system can be adapted for multi-tier racks, sidewall positions or narrower growing areas, making it a versatile choice for changing indoor horticultural layouts.
Care & Maintenance
Always unplug the LED grow light and allow it to cool to room temperature before cleaning or maintenance. The manufacturer advises using a feather duster or soft damp cloth and avoiding detergents, abrasives, solvents, acetone, alcohol and other aggressive cleaning substances. Allow the fixture to dry completely before reconnecting it to power, periodically inspect the power cable for damage and avoid touching the LED diodes directly.
FAQs
Can the Horti-Vision 720W Specialist Split Line 3.0 be separated into two lights?
Yes. The centre quick-release pin allows the 720W fixture to separate into two fully functional 360W LED fixtures that can be mounted independently.
What is the light output of this fixture?
The fixture is rated at 2160 μmol/s with an efficiency of 3.0 μmol/J.
Is the Horti-Vision 720W Split Line LED dimmable?
Yes. The manual dimmer provides four power settings: 290W, 430W, 580W and 720W.
What spectrum does the grow light provide?
It is a full-spectrum horticultural LED. The product packaging identifies a diode combination including 4000K warm white, 6500K cool white and 660nm red LEDs.
How high should the fixture be mounted above the canopy?
The manufacturer's manual recommends a hanging height of approximately 50–100 cm above the canopy. Final positioning should also follow your lighting plan and the requirements of the crop being grown.
Can I use the two 360W sections independently?
Yes. Once correctly separated using the designated quick-release system, each half functions as an independent 360W LED fixture and can be mounted separately.
Is the light suitable for multi-tier growing racks?
Yes. The manufacturer specifically identifies multi-tier racks, sidewall lighting, narrow growing spaces and top-lighting configurations as suitable applications.
Is the fixture waterproof?
The fixture is IP44 rated and is not designed to be submerged in water. Always install and operate it according to the manufacturer's environmental and electrical safety instructions.
How should I clean the LED fixture?
Disconnect the power, allow the fixture to cool completely and clean it with a feather duster or soft damp cloth. Avoid detergents, abrasives and aggressive solvents, and reconnect the fixture only after it is fully dry.
