What is a 90-degree Elbow used for?

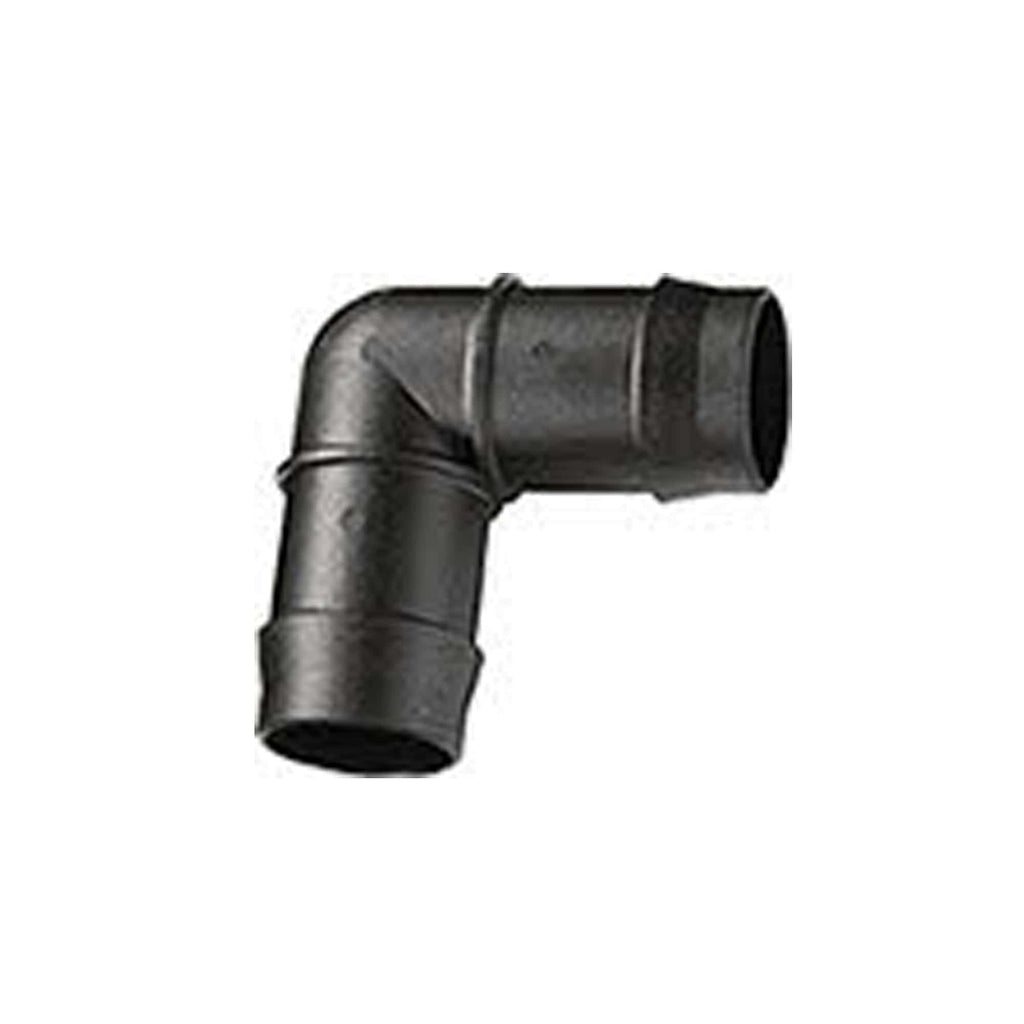

The Elbow is a barbed 90° connector used to neatly turn irrigation or hydro tubing around corners without kinking. It’s ideal for hydroponics, aquariums, ponds, and low-pressure water systems. Use two elbows together to create a U-turn when space is tight.
How do I choose the right Elbow size?
Match the Elbow to your hose size: 13mm for smaller lines, 19mm for general mains, and 25mm for higher-flow or drain lines. Never force mismatched sizes—use reducers if you need to change tubing diameter.
Does using Elbows reduce water flow?
Yes, slightly. Every 90° turn adds resistance. Excessive elbows or undersized hose can reduce flow and pressure. For better performance, use larger diameter hose and minimize tight turns in your system layout.
How do I install the Elbow properly?
Cut the hose square, warm the hose end slightly, push it fully onto the barbs with a twist, and add a clamp if needed. Ensure there’s a smooth curve leading into the elbow to reduce strain on the joint.
Do I need a clamp with the Elbow fitting?
Yes, especially for 19mm or 25mm hose, warm rooms, or if you're using a strong pump. Worm-drive or ratchet clamps work best. Skip zip ties if you want long-term reliability. No need for PTFE tape or sealant.
Why is my Elbow leaking or the hose popping off?
Common causes include wrong hose size, uneven cuts, hose not fully seated, lack of a clamp, or heat-softened tubing. Reinstall with a clean cut, push the hose on fully, and clamp securely to fix most issues.
Can I reuse the Elbow fitting?
Yes, if it’s not damaged. To remove a stuck hose, warm it, twist gently, and pull. If that fails, slice the hose end lengthwise and peel it off. Always rinse new fittings before first use.
Is the Elbow safe for nutrient solutions or organic inputs?
Yes—Elbows are commonly used in hydro systems. If you run compost teas or organics, flush lines regularly to prevent slime buildup. They're not rated for mains pressure; use in low-to-medium pressure setups.
Can I use the Elbow with pumps?
Yes—Elbows work well on the outlet side of submersible pumps to direct flow. They’re less ideal for suction lines, which need smoother curves to avoid restriction or cavitation. Keep suction runs short and kink-free.
Can the Elbow be buried or used outdoors?
Yes—it can be buried in garden beds or used in outdoor setups. Just protect it from sharp rocks and UV if exposed. Like most plastic fittings, it lasts longer if shaded and not exposed to constant sun.
Should I use an Elbow or just bend the hose?
If the hose bends cleanly without kinking or flattening, a gentle curve is fine and may have slightly better flow. If the bend is tight, use an Elbow for a cleaner, more secure corner connection.
What’s the most common mistake with Elbow fittings?
Using the wrong size, skipping clamps, or placing the elbow too close to a pump without support—these often lead to leaks or hose pop-offs. Always match sizes, clamp properly, and support hose runs.
How do I check for leaks after installation?
Run clean water through the line, dry the fitting’s exterior, then watch for any slow weeps or damp rings over 10–15 minutes. Clamp adjustments or hose reseating often fix small leaks quickly.
